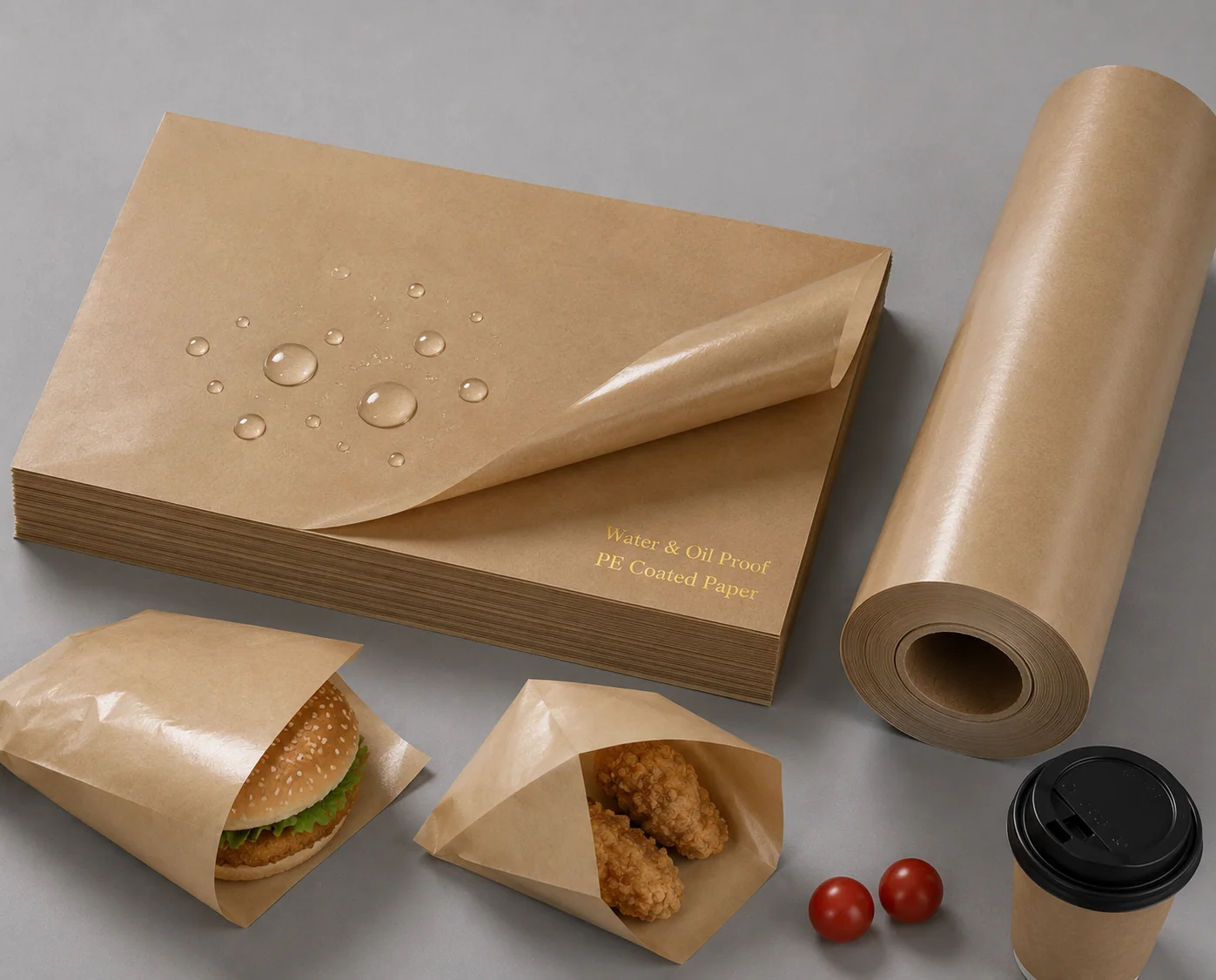

PE Coated Paper

PE Coated Paper Overview

PE coated paper consists of a paper or board substrate extrusion-coated with a thin layer of polyethylene (PE) on one or both sides. The PE layer creates a moisture-proof, grease-resistant, and heat-sealable barrier — making it the standard material for paper cups, cold-drink cups, ice-cream tubs, and takeaway containers. Available with single-side PE coating (1PE) for general moisture protection or double-side coating (2PE) for full liquid containment. PE grammage ranges from 12 gsm to 30 gsm depending on barrier requirements.

Specifications

• Substrate: Kraft paper / White paper / Board, 80–350 gsm
• PE coating: 12–30 gsm, one side (1PE) or two sides (2PE)
• Heat-sealable: Yes, standard PE heat-seal range 110–150°C
• Moisture barrier: WVTR ≤ 10 g/m²/24h (at 38°C, 90% RH)
• Format: Rolls (slit to width) & sheets
• Food-grade: FDA 21 CFR 176.170 & EU 1935/2004 compliant

Applications

• Paper cups — hot cups and cold cups
• Ice cream tubs and lids
• Takeaway food containers and boxes
• Frozen food packaging
• Grease-resistant wrapping and bags
• Butter and margarine wraps

Frequently Asked Questions

Should I choose one-side PE or two-side PE coating?

One-side PE is used when the barrier or heat-seal function is required on one face. Two-side PE is selected when both faces need protection, such as structures exposed to liquid or condensation on both sides. Confirm the filling product, temperature and forming process before selection.

How do I choose the base paper and PE coating weight?

The base paper or board controls stiffness, print surface and forming performance, while the PE weight affects barrier and sealing behavior. Provide the end use, substrate grammage, required coating side, roll or sheet dimensions and converting conditions for review.

Can PE coated paper be supplied for food-contact packaging?

Food-packaging grades are available, but compliance must be confirmed for the exact substrate, PE structure, contact conditions and destination market. Request the relevant documents before approving a direct-food-contact application.

Industries Using PE Coated Paper

Explore end-use requirements, recommended grades and buyer checkpoints for each industry.

• Food & Beverage - Match forming, barrier and food-contact requirements for cups, wraps, bags and takeaway packs.
• Packaging & Printing - Compare structure, print surface and converting performance for boxes, bags and printed packaging.

Related Buyer Guides

Compare material requirements and prepare a more precise technical inquiry.

• Food Packaging Paper: A Practical Buyer Guide - Compare cupstock, greaseproof, silicone-coated and barrier papers by application and converting need.

Product Features

• Moisture Barrier — PE layer prevents water and moisture penetration for food and liquid packaging.
• Heat-Sealable — Standard PE heat-seal range 110–150°C for cup and container forming.
• Grease Resistant — Suitable for oily and greasy food applications.
• Food-Grade Compliance — FDA 21 CFR 176.170 & EU 1935/2004 compliant for direct food contact.

Available Variants

• Single-Side PE Coated Paper (1PE)
• Double-Side PE Coated Paper (2PE)
• PE Coated Kraft Paper
• PE Coated White Board

Commercial Information

• Moq: 1 metric ton
• Lead Time: 2–3 weeks
• Samples: Free samples available
• Certification: FSC certified
• Container Loading: 40HQ full load: 25 metric tons

Request a Quote

Send your required GSM or thickness, sheet or reel size, quantity, application and destination port for a product recommendation and export quotation.

Request PE Coated Paper pricing · Request samples

Review quality control and documentation · See the ordering process
